MITSUBISHI HF-JP3534 Manual And Instructions
HF-JP3534 datasheetPDF datasheet

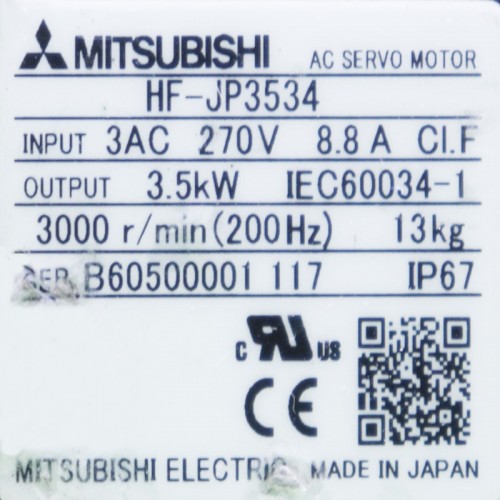

MITSUBISHI HF-JP3534 Product information and technical parameters:
Brand: MITSUBISHI
Name: Low inertia medium / high power servo motor
Model: HF-JP3534
Servo motor series: low inertia, medium / high power.
Rated output: 3.5kw.
Rated speed: 3000r/min.
Electromagnetic brake: No.
Shaft end specification: Standard (straight axis).
Voltage: 400V level.
Features: low inertia for high speed / acceleration and deceleration operation occasions.
IP level: IP67.
Application example:
1, food processing machinery.
2, printing machine.
3, injection molding machine (11KW, 15KW).
4, large press machine (11KW, 15KW).
The protection level of the HF-SP/HF-JP series servo motor is IP67 (except the shaft part).
Low inertia of the power servo motor (0.5kW ~ 9kW), the maximum speed: 6000r/min (rated speed: 3000r/min),
Suitable for high frequency positioning and acceleration / deceleration operations, especially for food processing machines and printing machines.
Low inertia, high power, no cooling fan servo motor (11kW and 15kW), maximum speed: 3000r/min (rated speed: 1500r/min).
The motor structure is more compact due to the adoption of the non cooling fan design, and the connection is reduced by using the power source connector.
(compared with the HF-LP series servo motor with the same power, the volume is reduced by about 46%, and the weight is reduced by about 34%,
Suitable for high frequency positioning and acceleration / deceleration operations, especially for injection molding machines and large presses.
HF-JP703 (4) /903 (4) maximum speed: 5000r/min.
