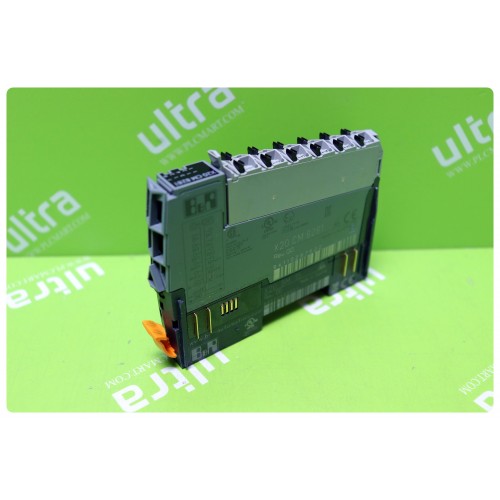

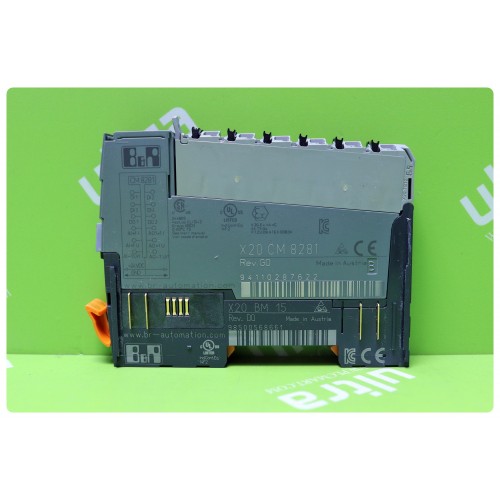

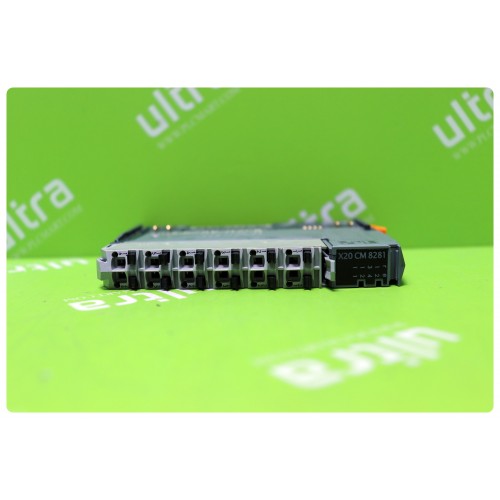

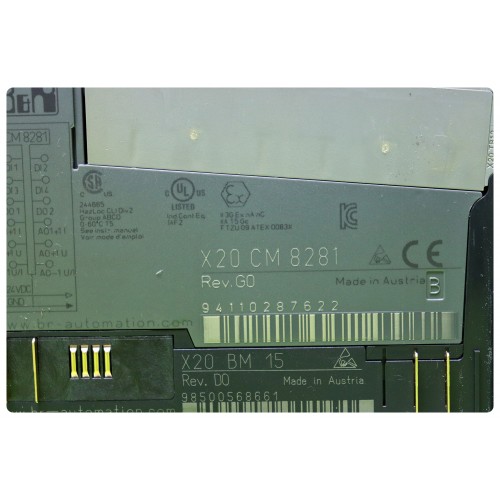

[중고] X20CM8281 B&R 피엘씨 요약정보 및 구매

시리얼번호는 사진과 다를수 있습니다. 품절시 전화문의 부탁드립니다.

리뷰0
제조사 B&R
원산지 AUSTRIA
브랜드 MITUSBISHI
모델 X20CM8281
판매가격 130,000원 (* VAT 별도)
판매가격 130,000원 (* VAT 별도)

상품의 재고가 부족하여 구매할 수 없습니다.

관련상품

등록된 상품이 없습니다.

상품 정보

상품 기본설명

시리얼번호는 사진과 다를수 있습니다. 품절시 전화문의 부탁드립니다.

상품 상세설명

Short description
I/O module4 digital inputs, 2 digital outputs, 1 analog input, 1 analog output, special functions
General information
B&R ID code0x24C3
Status indicatorsI/O function per channel, operating state, module status
Diagnostics
Module run/errorYes, using status LED and software
Analog inputsYes, using status LED and software
Digital outputsYes, using status LED and software (output error status)
Power consumption
Bus0.01 W
Internal I/O1.75 W
Additional power dissipation caused by actuators (resistive) [W]-
Certifications
CEYes
ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X
ULcULus E115267
Industrial control equipment
HazLoccCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5
DNV GLTemperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck)
LRENV1
KRYes
ABSYes
EACYes
KCYes
Digital inputs
Quantity4
Nominal voltage24 VDC
Input characteristics per EN 61131-2Type 1
Input voltage24 VDC -15 % / +20 %
Input current at 24 VDCTyp. 3.3 mA
Input circuitSink
Input filter
Hardware≤2 µs
SoftwareDefault 1 ms, configurable between 0 and 25 ms in 0.2 ms intervals
Connection type1-wire connections
Input resistanceTyp. 7.18 kΩ
Additional functions20 kHz event counting, gate measurement
Switching threshold
Low<5 VDC
High>15 VDC
Insulation voltage between channel and bus500 Veff
Event counters
Quantity2
Signal formSquare wave pulse
EvaluationEach falling edge, cyclic counter
Input frequencyMax. 20 kHz
Counter 1Input 1
Counter 2Input 3
Counter frequencyMax. 20 kHz
Counter size16-bit
Gate measurement
Quantity1
Signal formSquare wave pulse
EvaluationRising edge - falling edge
Counter frequency
Internal48 MHz, 24 MHz, 12 MHz, 6 MHz, 3 MHz, 1.5 MHz, 750 kHz, 375 kHz, 187.5 kHz
Counter size16-bit
Length of pause between pulses≥100 µs
Pulse length≥20 µs
Supported inputsInput 4
Analog inputs
Quantity1
Input±10 V or 0 to 20 mA / 4 to 20 mA, via different terminal connections
Input typeSingle ended
Digital converter resolution
Voltage±12-bit
Current12-bit
Conversion time400 µs, conversion runs asynchronously to the X2X Link cycle
Output formatINT
Output format
VoltageINT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
CurrentINT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Input impedance in signal range
Voltage>1 MΩ
Current-
Load
Voltage-
Current<300 Ω
Input protectionProtection against wiring with supply voltage
Permissible input signal
VoltageMax. ±15 V
CurrentMax. ±50 mA
Output of digital value during overload
Undershoot
Voltage0x8001
Current0x0000
Overshoot
Voltage0x7FFF
Current0x7FFF
Conversion procedureSuccessive approximation
Input filter2nd-order low pass / cutoff frequency 1 kHz
Max. error
Voltage
Gain0.08%
Offset0.02%
Current
Gain0 to 20 mA = 0.08 % / 4 to 20 mA = 0.1 %
Offset0 to 20 mA = 0.03 % / 4 to 20 mA = 0.16 %
Max. gain drift
Voltage0.01 %/°C
Current0 to 20 mA = 0.009 %/°C
4 to 20 mA = 0.0113 %/°C
Max. offset drift
Voltage0.002 %/°C
Current0 to 20 mA = 0.004 %/°C
4 to 20 mA = 0.005 %/°C
Nonlinearity
Voltage<0.02%
Current<0.02%
Insulation voltage between channel and bus500 Veff
Digital outputs
Quantity2
VariantFET positive switching
Nominal voltage24 VDC
Switching voltage24 VDC -15 % / +20 %
Nominal output current0.5 A
Total nominal current1 A
Connection type1-wire connections
Output circuitSource
Output protectionThermal cutoff for overcurrent and short circuit, integrated protection for switching inductances, reverse polarity protection
Diagnostic statusOutput monitoring with 10 ms delay
Leakage current when the output is switched off5 µA
RDS(on)105 mΩ
Peak short-circuit current<14 A
Switch-on in the event of overload shutdown or short-circuit shutdownApprox. 10 ms (depends on the module temperature)
Switching delay
0 → 1<250 µs
1 → 0<270 µs
Switching frequency
Resistive loadMax. 100 Hz
Inductive loadSee section "Switching inductive loads"
Braking voltage when switching off inductive loadsTyp. 50 VDC
Insulation voltage between channel and bus500 Veff
Analog outputs
Quantity1
Output±10 V or 0 to 20 mA, via different terminal connections
Digital converter resolution12-bit
Conversion time300 µs, conversion runs asynchronously to the X2X Link cycle
Settling time on output change over entire range1 ms
Switch on/off behaviorInternal enable relay for booting and errors
Max. error
Voltage
Gain0.04%
Offset0.0225%
Current
Gain0.05%
Offset0.125%
Output protectionShort circuit protection
Output format
VoltageINT 0x8001 - 0x7FFF / 1 LSB = 0x0010 = 4.882 mV
CurrentINT 0x0000 - 0x7FFF / 1 LSB = 0x0010 = 9.766 µA
Load per channel
VoltageMax. ±10 mA, load ≥ 1 kΩ
CurrentMax. load is 400 Ω
Max. gain drift
Voltage0.012 %/°C
Current0.014 %/°C
Max. offset drift
Voltage0.0075 %/°C
Current0.03 %/°C
Error caused by load change
VoltageMax. 0.02%, from 10 MΩ → 1 kΩ, resistive
CurrentMax. 0.5%, from 1 Ω → 400 Ω, resistive
Nonlinearity<0.1%
Insulation voltage between channel and bus500 Veff
Electrical properties
Electrical isolation
Channel isolated from bus

Channel not isolated from channel
Operating conditions
Mounting orientation
HorizontalYes
VerticalYes
Installation elevation above sea level
0 to 2000 mNo limitations
>2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP20
Ambient conditions
Temperature
Operation
Horizontal mounting orientation-25 to 60°C
Vertical mounting orientation-25 to 50°C
DeratingSee section "Derating"
Storage-40 to 85°C
Transport-40 to 85°C
Relative humidity
Operation5 to 95%, non-condensing
Storage5 to 95%, non-condensing
Transport5 to 95%, non-condensing
Mechanical properties
NoteOrder 1x X20TB12 terminal block separately
Order 1x X20BM11 bus module separately
Pitch12.5+0.2mm
