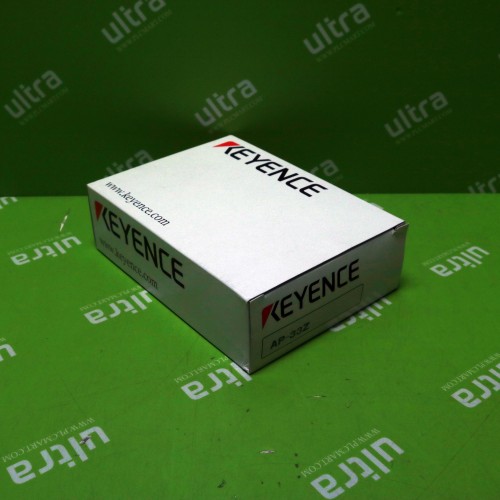

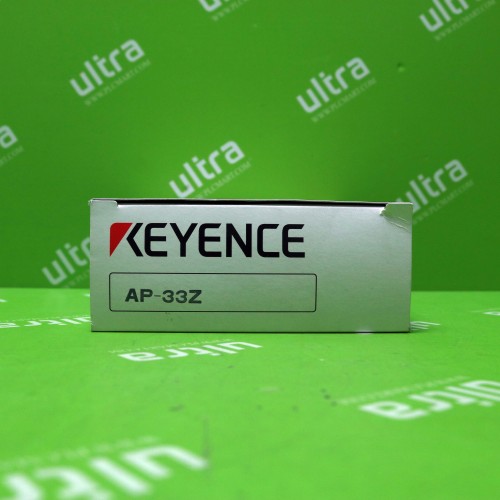

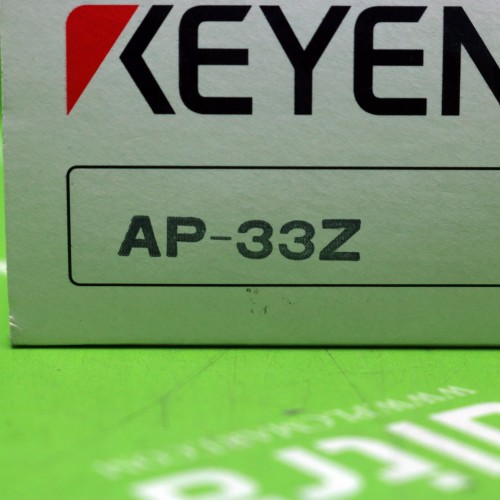

[신품] AP-33Z 키엔스 센서 > SENSOR

Model

AP-33Z

Type

Positive pressure, Zero shift, NPN

Rated pressure

0 to 145.0 PSI

Fluid type

Air or non-corrosive gases

Type of pressure

Gauge pressure, air or non-corrosive gases

Display

3 1/2-digit, 2-color, 7-segment LED (Character height: 11 mm 0.43")

Display resolution

0.01 bar, 0.2 Psi, 0.001 MPa, 0.01 kgf/cm²

Detectable pressure range

-15 to +110 % of F.S.

Response time (Chattering prevention function)

2.5/5/100/500 ms (selectable)

I/O

Zero-shift input

No-voltage input (with contacts, without contacts), input time: 20 ms or more

Control output

Maximum NPN open-collector output: 100 mA (40 V or less), residual voltage: 1 V or less, N.O./N.C. switchable

Rating

Power voltage

12 to 24 VDC ±10 % or less, Ripple (P-P) 10 % or less

Current consumption

50 mA (at 24 V) or less, 90 mA (at 12 V) or less

Environmental resistance

Pressure resistance

14.7 bar (1.47 MPa)

Ambient temperature

0 to +50 °C 32 to 122 °F (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions

Material

Front housing: Polyamide, Front panel sheet: PET, Rear housing: Polysulfone,Pressure port: Die-cast zinc, Cable: Oil-proof cabtyre cable

Accessories

Mounting bracket A, mounting bracket B, hexagon socket head cap plug

Weight

Approx. 120 g
